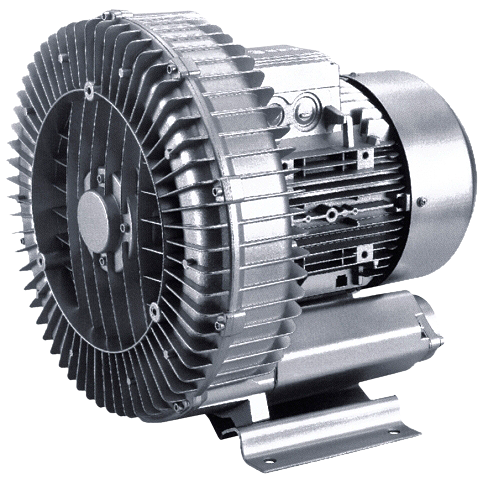

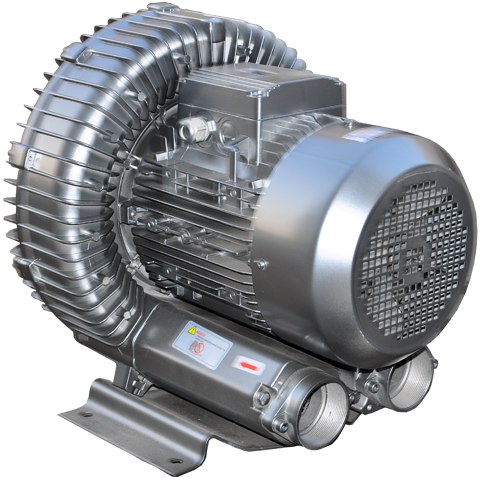

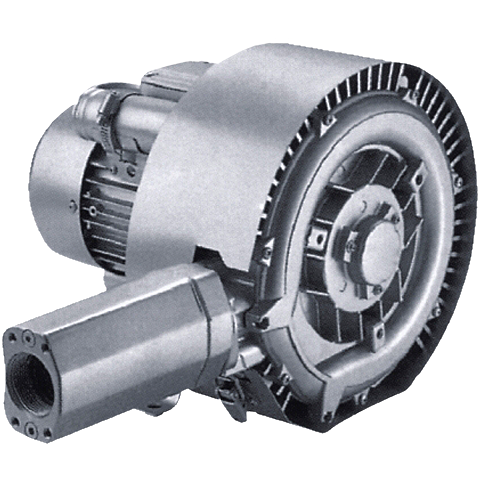

Vortex high pump

products

Product

Product name:
XGB823-15KW
TEL:0580-8080435
Consultation
  • Introduction
  • Parameter
  • Chart
  • Case

Scope:

Pneumatic transport systems, vacuum lifting and clamping systems, packaging machines, bagging / bottling / filling systems, soil improvement, foam forming systems, mail classification and parcels, food processing systems, laser printers, dental vacuum suction machines, paper processing systems, two-stage fans, printers, duplicating machines can meet higher requirements, darn machines, fishpond ventilation systems, gas analysis, swimming pool ventilation。

Principle:

When the impeller of the high-pressure blower rotates, due to the centrifugal force, the wind vane makes the gas move forward and outward, thus forming a series of spiral movements. The air between the blades of the impeller is spirally accelerated and the gas outside the pump body is squeezed into the side groove (inhaled by the suction port T). When it enters the side channel ②, the gas is compressed, and then it returns to the blades of the impeller 1 to accelerate the rotation again. When the air passes through the impeller and side slot along a clamped spiral track, each impeller increases the degree of compression and acceleration. With the progress of rotation, the function of the gas increases, which further increases the gas pressure along the side channel. When the air reaches the connection point between the side seeding and the discharge flange (the side channel narrows at the outlet & gt;), the air is extruded out of the blade and discharged from the pump body through the outlet muffler 4.




Model Motor Weight Noise Qmax Vacuum Mpa Vacuumvalves
Rate Rated
Output power Voltage Electricity Type*Model
  Hz KW V A KG Db(A) m³/h mbar mbar 2B*4...
XGB8-23 50 15.0 345-415△/600-720Y 35.0△/20.0Y 197 74 1110 -420 370 1*...750/...860



Drawing


Model XGB1-10A XGB1-10B XGB2-10 XGB2-20 XGB3-10 XGB4-10 XGB4-20 XGB5-10 XGB5-20 XGB6-10 XGB7-10 XGB7-20 XGB8-10 XGB8-20 XGB9-10 XGB9-20
Phase 1 1 3 3 3 1 3 1 3 3 3 3 3 3 3 3
A 184 200 246 284 268 286 322 334 372 360 382 426 451 500 550 615
A1 - - - 316 - - 324 - 411 - - 426 - 549 - 780
B 200 212 247 270 272 302 315 337 371 366 384 410 461 490 569 607
C 80 86 90 45 93 115 58 120 60 122 125 63 152 152 207 103.5
D 157 184 205 205 205 225 225 270 270 284 290 290 356 356 360 360
E 172 204 230 230 230 255 255 320 320 325 325 325 394 394 415 415
F 205 227 219 316 260 294 401 314 465 354 377 473 450 589 525 752
G 82 105 92 135 92 160 191 160 190 191 191 191 230 230 268 345
H 93 110 128 128 141 154 154 175 175 192 197 197 240 240 300 300
H1 - - - 106 - - 153 - 144 - - 162 - 199 - 234
J 72 98 101 111 101 120 128 120 135 128 128 128 148 148 167 167
K 55 65 83 83 83 95 95 140 140 140 140 140 170 170 533 533
L 115 130 108 108 108 130 130 190 190 180 180 180 2174 217
M 66 62 75 75 82 70 73 96 98 64 64 84 140   39 39
N 47 50 71 130 69 75 151 87 171 74 109 205 124 236 89 230
O 26 33 39 39 41 46 45 48 48 56 54 53 65 65 92 92
P - -           55 55 56 55 55     100 100
Q - - 64 64 64 72 72 83 83 93 83 83     150 150
R 7 8 10 10 10 12 12 14 14 13 15 15 15 15 15 15
S 2 2.5 2.5 2.5 2.5 3 3 4 4 4.5 4.5 4.5 6 6 21 21
T - - - 88 - - 104 - 106 - - 130 - - - 117
U - - M6*17 M6*17 M6*17 M6*19 M6*19 M8*17 M8*17 M8*17 M8*17 M8*17     M12*30 M12*30
V M14*15 M16*15 M16*15 M16*15 M16*15 M16*15 M16*15 M16*15 M20*15 M20*15 M20*15 M20*15

The following performance curve is measured under the condition of suction of 15 ℃ air and exhaust pressure of 1013mbar. When the tolerance is & plusmn; 10%, and the suction air and ambient temperature are not more than 25 ℃, the total pressure gauge shown in the figure can be reached.
